MCCB Factory Lugs

The UTE100 through UTS1200 frame circuit breakers can be ordered with mechanical line and load side lugs. The standard lugs can be removed for the installation of bus bar or "flexi-bar" connections. All lugs are UL/cUL Listed Certified for their proper application and marked for use with aluminum and copper (Al/Cu) or copper only (Cu) conductors. Lugs suitable for copper and aluminum conductors are made of tin-plated aluminum. Mechanical lugs are sold either factory installed or as field installable kits. At the bottom of this article is further information as to LSEA MCCB LUG KIT information.

See lugs below.

UTE100 Frame - ITEM# 70821175005

UTS150 Frame - ITEM # 70821172021

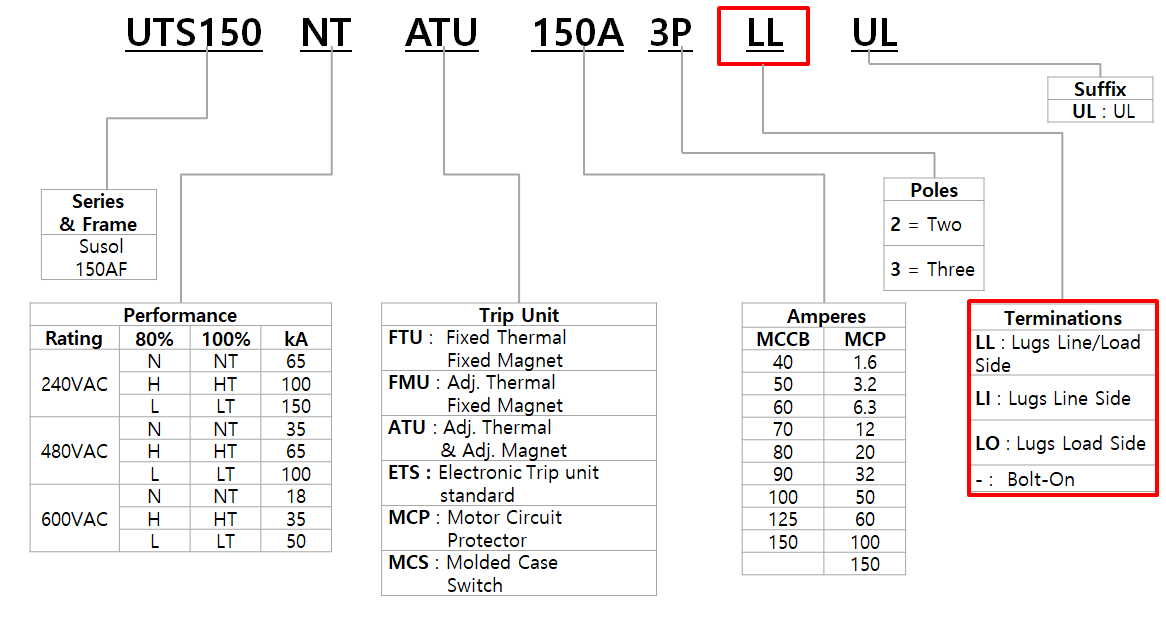

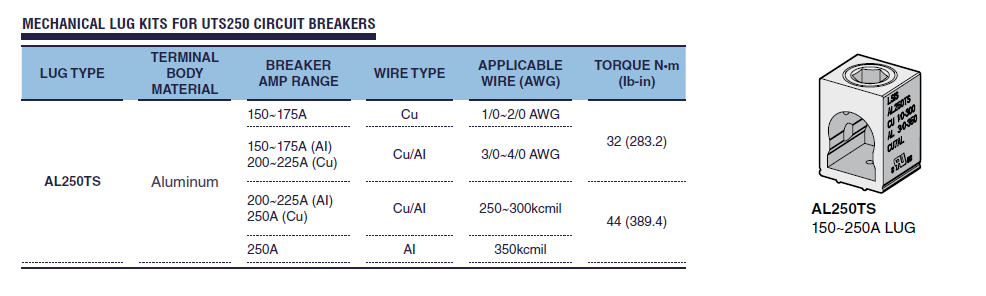

UTS250 Frame - ITEM # 70821172023

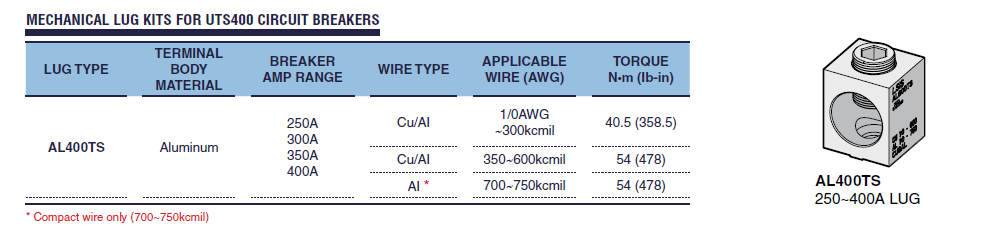

UTS400 Frame - ITEM # 70821173006 **

UTS600 Frame - ITEM# 70821173008

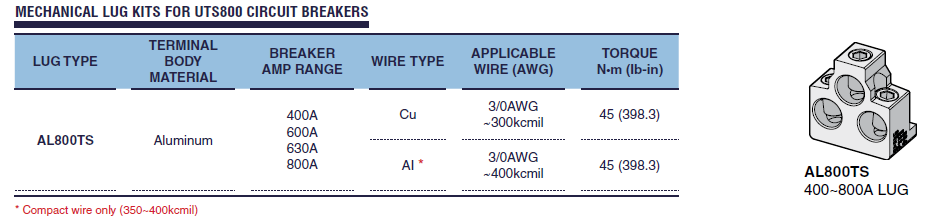

UTS800 Frame - ITEM # 70821176303

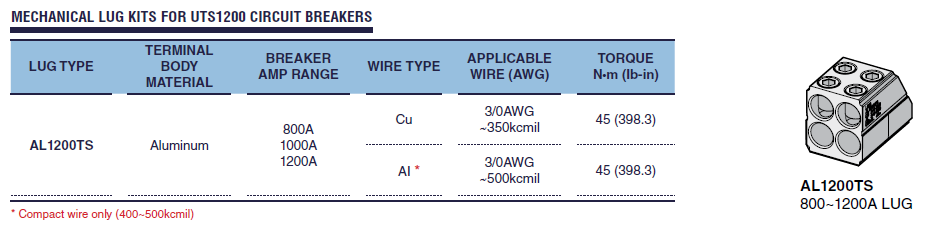

UTS1200 Frame - ITEM # 70821176304

** NOTE: Recently, we have completed UL certification and have added AL600TS to the UTS400 file description. So, one could order this lug separately and install it on UTS400 MCCB which is now allowed with the proper terminal covers are installed.

Terminal Cover option:

item# 64611173404 has description of (COVER, TERMINAL 3P, UTS600).

Please refer to the following below knowledge base article to verify MCCB LUG ITEM # and associated quantities given for each LUG KIT type:

How many lugs come in an MCCB lug kit? (zohodesk.com)

Thank you.

LS Electric America Application Engineering Group
