User Jack Circuit Assembly (Part Numbers by Application)

User Jack Circuit Assembly (Part Numbers by Application)

Below are the circuit assembly part numbers and their respective applications. Please note that connector specifications vary depending on the VCB model, so it is necessary to check the exact VCB type before applying.

1. Part Numbers and Applications

  • 77023172101 – CIRCUIT ASS'Y, USER JACK, M, AMP, VL

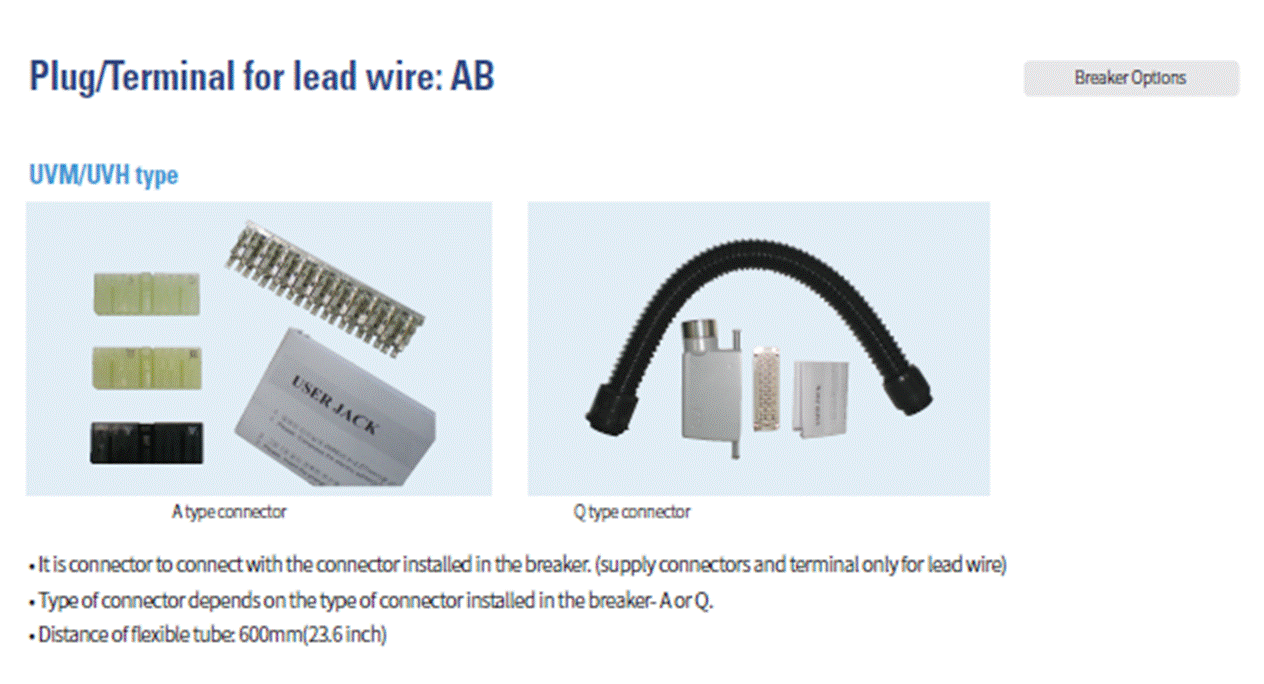

     → For VCB A type connector

  • 77023182007 – CIRCUIT ASS'Y, USER JACK, AMP, PACKED, LIS
     → For LIS

  • 77023460001 – CIRCUIT ASS'Y, USER JACK, AN AS AH
     → For ACB

2. Important Note

  • For VCB products, connector specifications differ depending on the VCB model.

  • Always confirm the exact VCB model before selecting and applying the connector.
