User Jack and Crimping Tools
This article contains comprehensive information on the user jacks and terminal configurations involved in ACB (Air Circuit Breaker) connections.
I’m sharing the part number that includes both the user jack and terminals, as follows:
77023460001 – CIRCUIT ASS'Y, USER JACK, AN, AS, AH
I’m sharing the part number that includes both the user jack and terminals, as follows:
77023460001 – CIRCUIT ASS'Y, USER JACK, AN, AS, AH
Crimping and Removal Tools

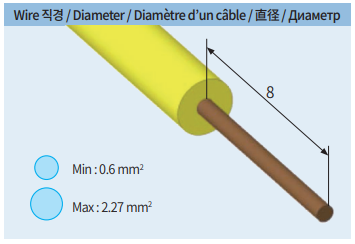

For crimping and removal tools, please refer to the photos above (taken from our User Guide), which show the tools used for user jack installation and removal.
-

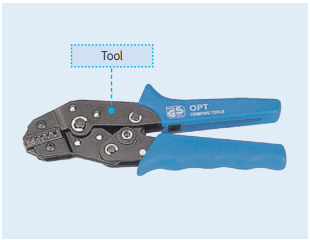

Crimping Tool (Right):
The exact model shown may be difficult to source in the U.S., but you can use any tool with the same specifications and functionality. -
Removal Tool (Left):
Similarly, any removal tool with the same design and specs should work. However, if you're looking to purchase the exact one we've used internally, I’ve seen our team commonly use the following model in the photo provided below

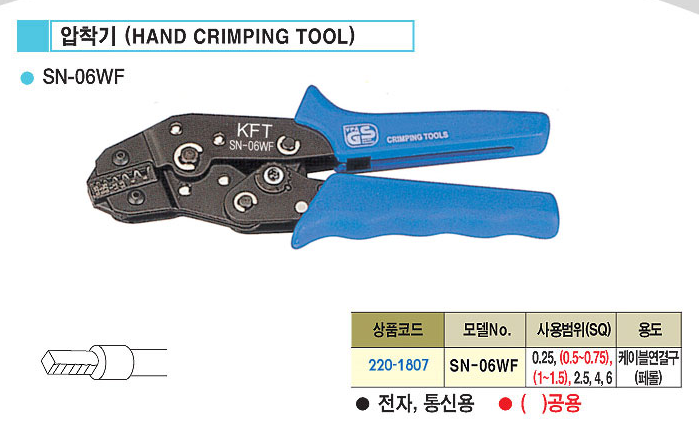

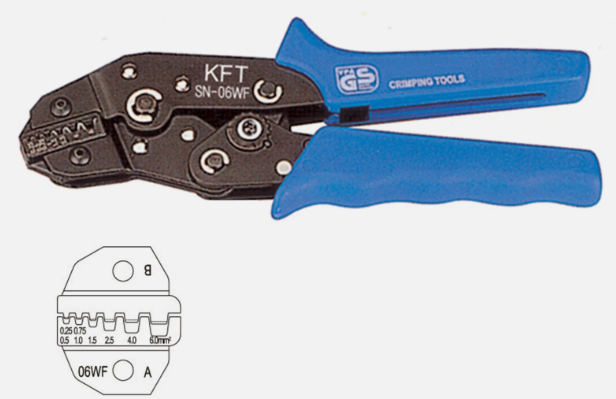

Crimping Tool Reference Photo

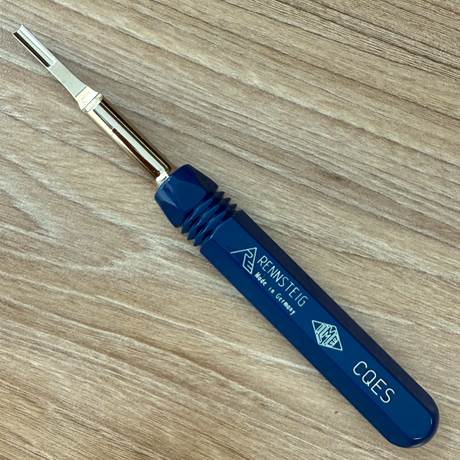

Removal Tool Reference Tool
The removal tool can also be any removal
tool with those specifications, but I have seen our team use the following if
you want to purchase this.
