Understanding and Replacing Rating Plugs in ACB (Air Circuit Breakers)
What is a Rating Plug?
A rating plug is an essential component in an adjustable trip molded case circuit breaker that determines the operational amperage level. It serves as a replaceable part that defines the maximum current the circuit breaker can handle before tripping. Rating plugs allow for the customization of circuit breakers to match specific system requirements without the need to replace the entire breaker, enabling flexibility and cost-efficiency in electrical system design.

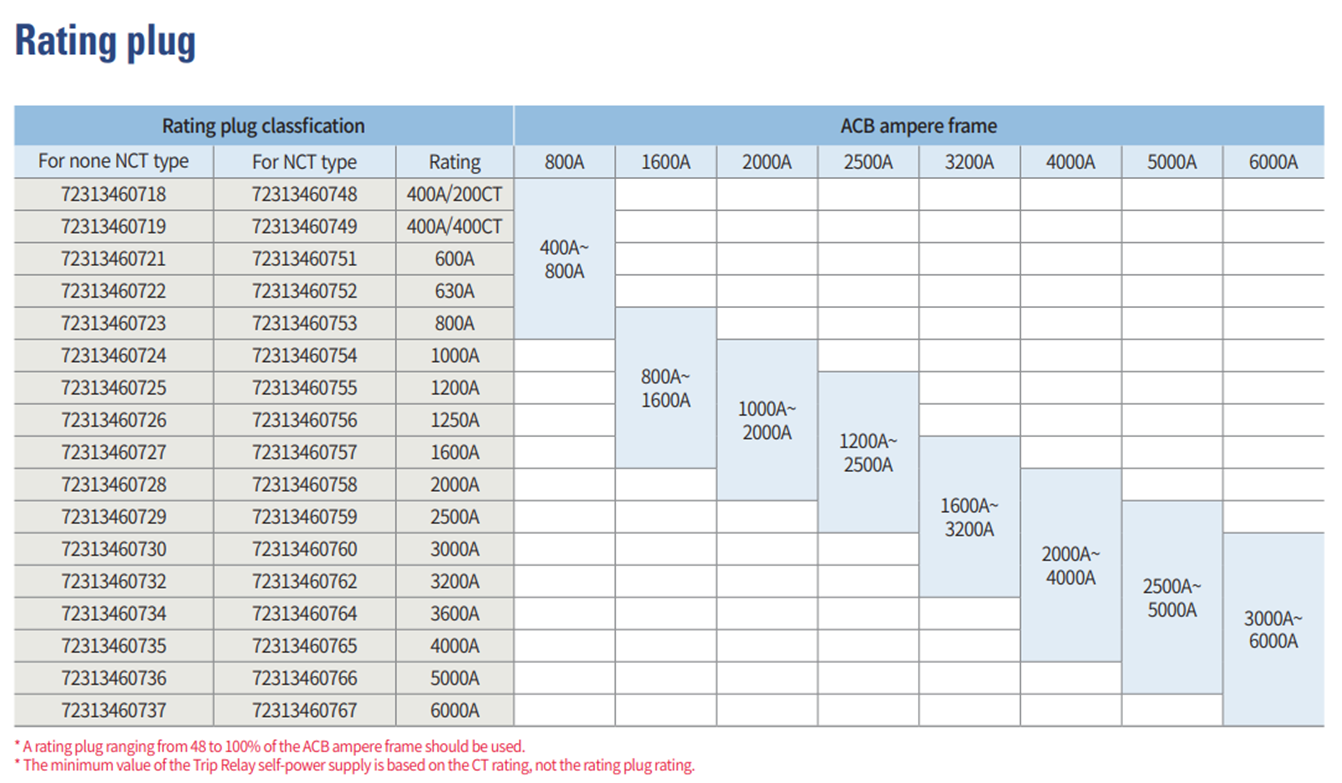

Selecting the Correct Rating Plug
The selection of a rating plug is crucial for the proper functioning of a circuit breaker. The rating plug should be compatible with the circuit breaker's frame and the connected circuit's characteristics. Rating plugs are typically available at about 50% of the ampere frame based on the current transformer (CT) ratio of the circuit breaker.

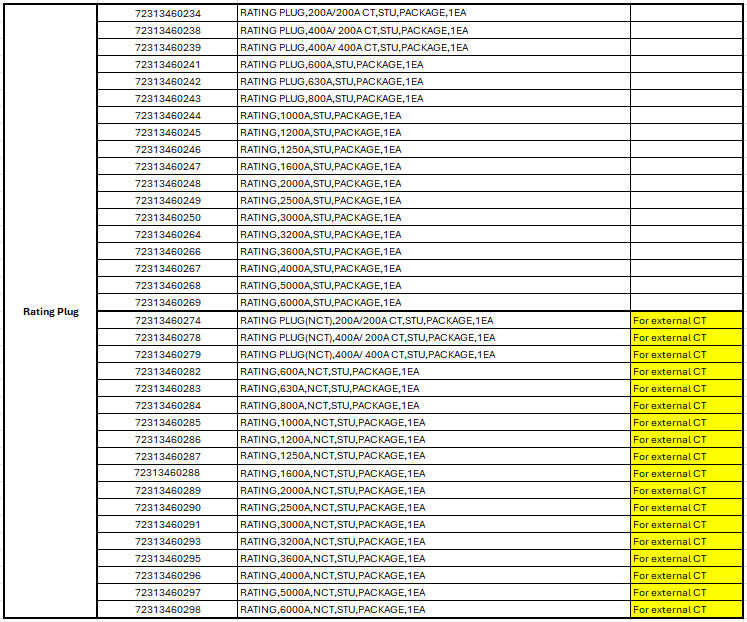

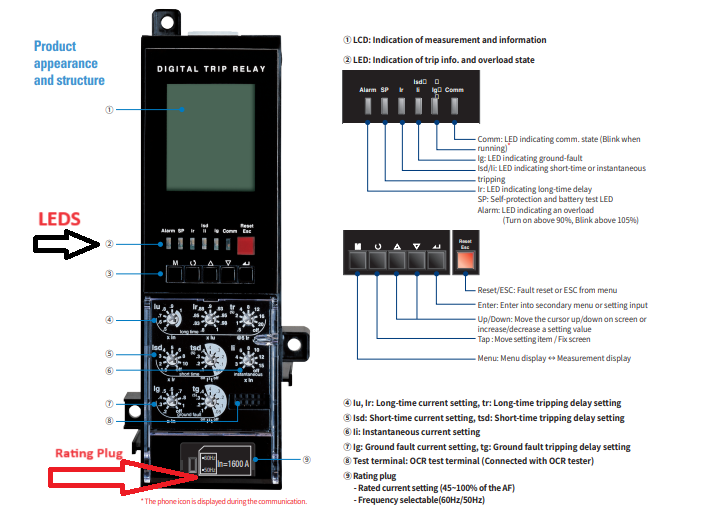

Alarm Indication for Incorrect Rating Plug
If an incorrect rating plug is installed in a circuit breaker, the system is designed to alert this misalignment. An alarm will trigger, indicated by the illumination of all LEDs on the trip unit. This is a critical safety feature to prevent the use of a circuit breaker with an inappropriate rating plug, which could lead to equipment damage or safety hazards.
Safety Precautions for Replacing Rating Plugs
Before attempting to replace a rating plug, it is mandatory to de-energize and open the circuit breaker to ensure there is no electrical current flowing through it. This is a safety measure to prevent electrical shocks and accidents during the replacement process.Replacement Procedure
To replace the rating plug:
- Confirm that the circuit breaker is de-energized and open.
- Use a small flathead screwdriver to carefully pry out the existing rating plug.
- Once the old plug is removed, align the new rating plug with the socket.
- Gently click in the new rating plug into place, ensuring it is secure.
