Nuisance Trips on UTS800 and UTS1200

Nuisance Trips on UTS800 and UTS1200

If you have a UTS800 or UTS1200 which is getting nuisance trips, it is recommended to try the below dip switch settings. This can be especially useful if you are noticing trips in cold weather conditions.


Procedure

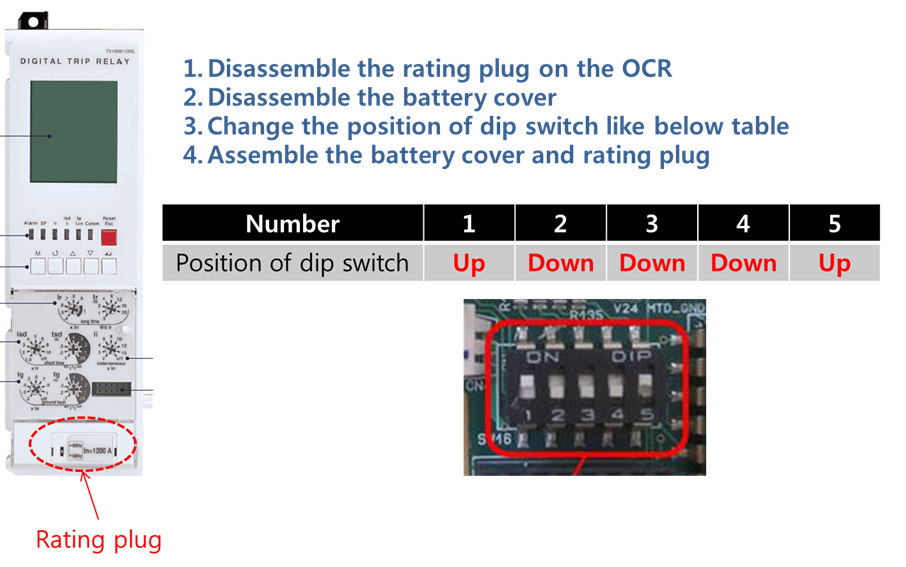

Remove the rating plug on the OCR and set the dip switches like below. Setting up the dip switches like this will override short inrush currents.
