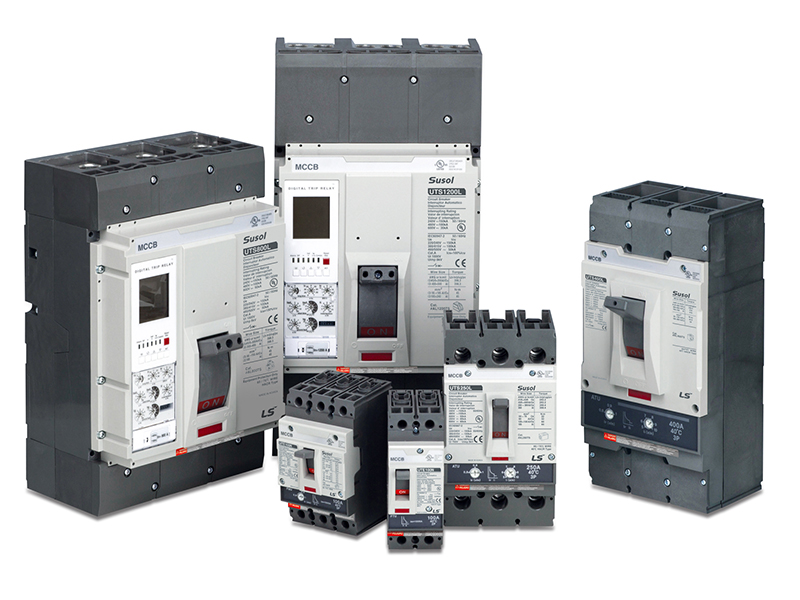

MCCB ( Step by Step) Preventive Maintenance
1. Safety First (Mandatory)
Before touching anything:
Apply Lockout/Tagout (LOTO)
on the feeder
Verify zero voltage with a
calibrated meter (phase-to-phase and phase-to-ground)
Wear appropriate PPE
(arc-rated gear if required by site)
Confirm downstream equipment is
de-energized
2. Visual Inspection (Panel Closed First)
With the panel still closed (if possible):
Check breaker position
(ON/OFF/TRIPPED)
Look for:
Burn marks or discoloration on
panel door or window
Smell of overheating
Dust buildup or moisture inside
panel
Verify labeling and breaker
accessibility
3. Open Panel & Initial Internal Check
After de-energizing:
Inspect breaker body and
surrounding area
Look for:
Cracks or deformation in casing
Dust, corrosion, or moisture
Signs of arcing or overheating
4. Torque Check on Terminations
This is one of the most important steps:
Use calibrated torque wrench
Check:
Line-side and load-side
terminals
Re-torque to manufacturer
specification (do NOT over-tighten)
Look for:
Loose lugs
Oxidation on copper/aluminum
conductors
5. Thermal Inspection (If Available)
Perform infrared thermography
underload (before shutdown or during normal operation)
Check for:
Hot spots on terminals
Uneven phase heating
Any significant temperature
difference = warning sign
6. Mechanical Operation Test
With breaker still de-energized:
Turn breaker ON → OFF manually
Check:
Smooth operation (no stiffness)
Positive click action
Handle alignment
Reset trip mechanism if it was
previously tripped
7. Trip Function Test (Optional but
Recommended)
Depending on breaker type:
Use test button (if available)
Or secondary injection test (for
advanced maintenance)
Confirm:
Trip mechanism operates
correctly
Breaker resets properly
afterward
8. Cleaning
Use:
Dry lint-free cloth
Low-pressure air (dry only)
Clean:
Insulation surfaces
Terminal areas
Arc chute area (if accessible
per manufacturer)
Do NOT use solvents unless
manufacturer allows
9. Accessory Check (If installed)
Inspect and test:
Shunt trip
UV release
Motor operator
Auxiliary contacts
Under-voltage release
Verify correct wiring condition and insulation integrity.
10. Insulation Resistance Test (Megger
Test)
Test phase-to-phase and
phase-to-ground
Typical test voltage: 500V–1000V
DC (depends on system rating)
Compare results with previous
records
Low insulation = moisture or
degradation issue
11. Documentation
Record:
Torque values
IR readings (thermography +
megger)
Visual findings
Any corrective actions taken
Breaker condition status (Good /
Watch / Replace)
12. Re-Energization
Ensure all tools removed
Reinstall covers properly
Remove LOTO per procedure
Energize system step-by-step
Monitor breaker underload for
initial period
Recommended Frequency (Typical)
Visual check: every 3–6 months
Torque check: every 6–12 months
Full maintenance: every 1–3 years
(depending on load criticality)
Thermal scanning: annually or
quarterly for critical systems
