MC Contactor Coil Change Procedure

MC Contactor Coil Change Procedure

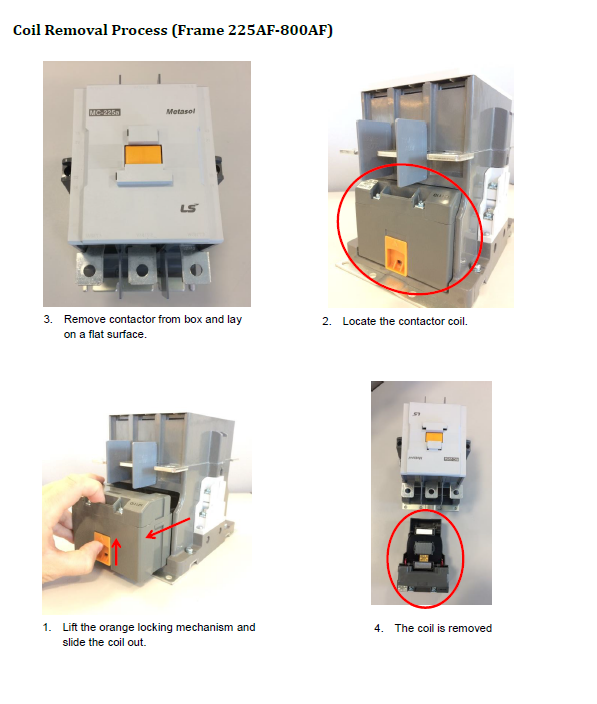

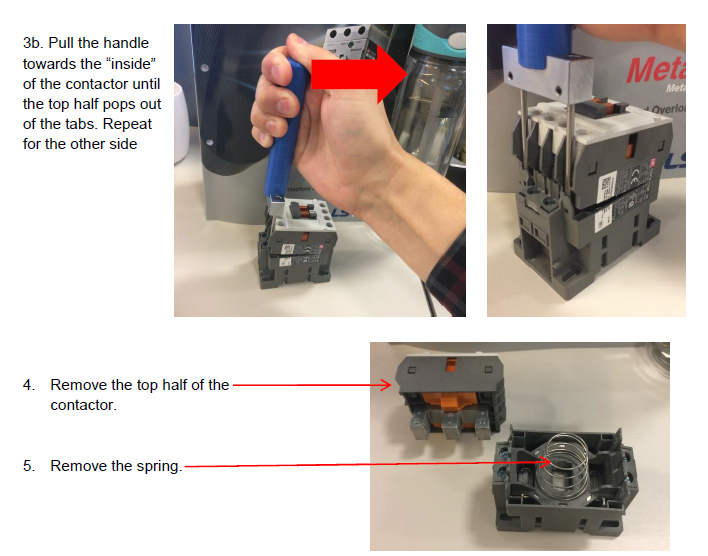

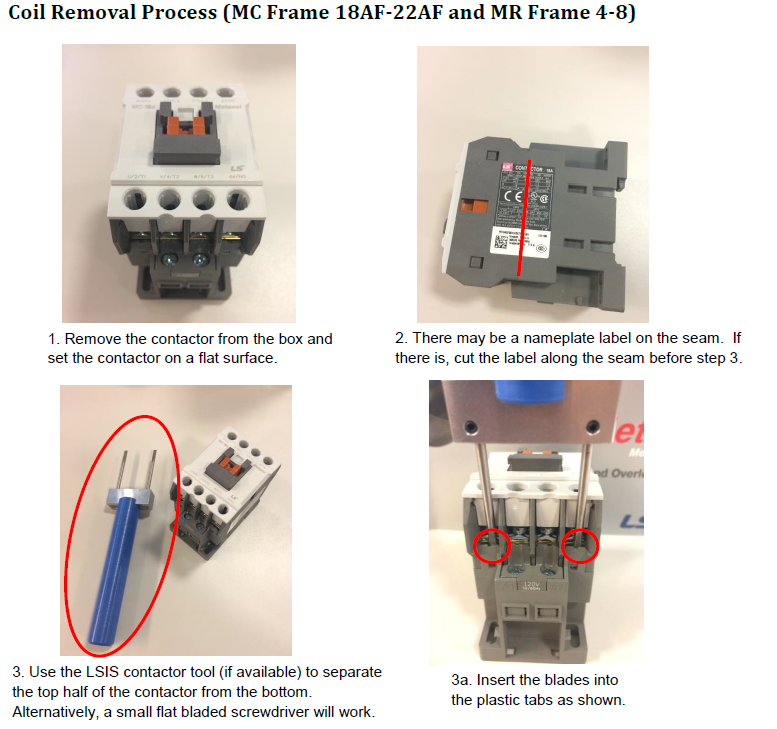

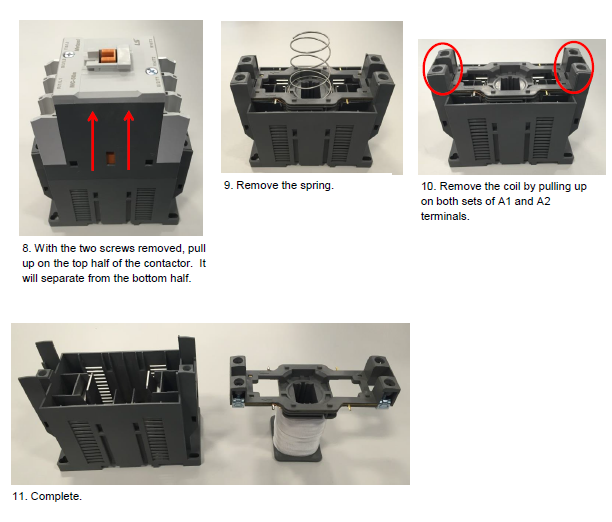

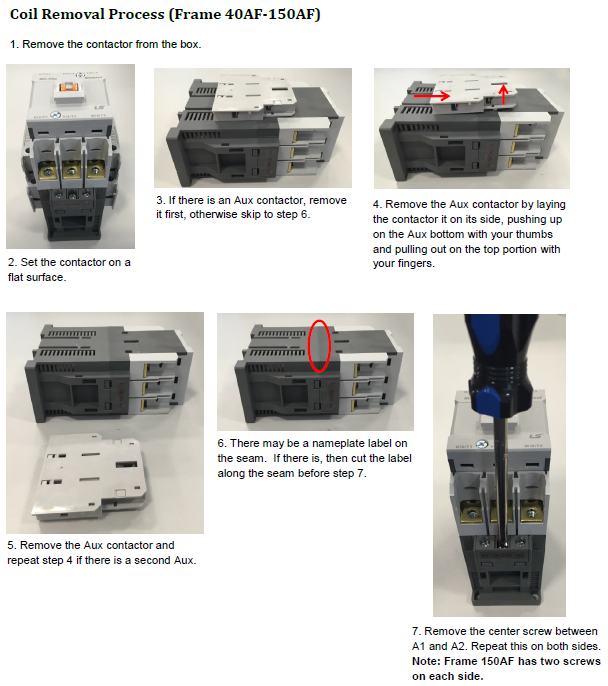

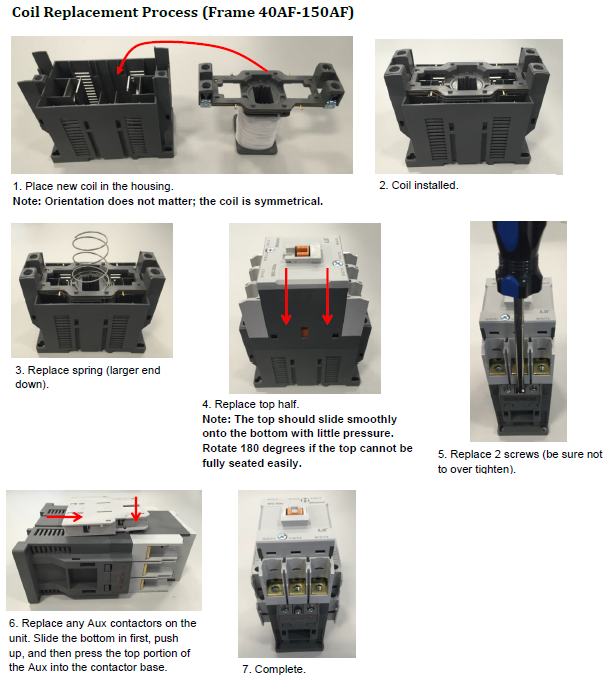

This shows the proper disassembly and re-assembly for the LS MC/MR Contactor in order to change the coil. If there is a situation where a coil is damaged and needs to be replaced or simple a different coil voltage is needed for a MC/MR contactor, please use the following instructions.

For contactor frames from MC-6a to MC-150a, AC and DC coils are NOT interchangeable. AC coil contactors and DC coil contactors are physically different sizes.
