Interphase Insulation Barriers – Overview

Purpose

The purpose of an interphase insulation barrier is to ensure adequate insulation performance between phases, helping to maintain electrical safety and prevent phase-to-phase faults within the breaker assembly.

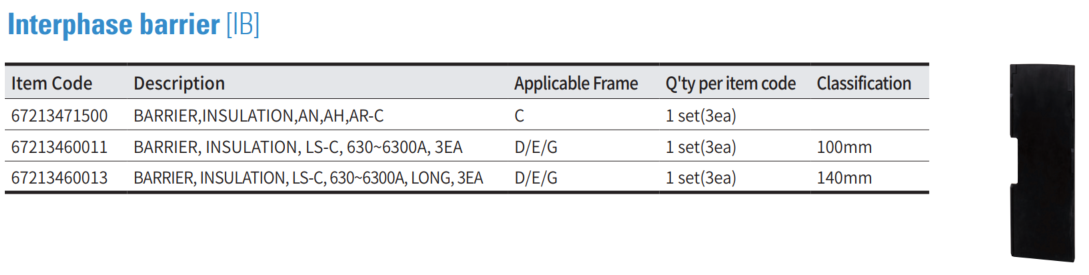

Item Code Breakdown

• 67213471500
  Interphase insulation barrier used for Compact ACB products

• 67213460011
  Insulation barrier that is included inside item code 67213460061

• 67213460013
  Insulation barrier that is 40 mm longer than 67213460011, used where additional phase separation is required

Application Notes

• Interphase insulation barriers are assembled and shipped with the UAW draw-out breaker body and the UAW cradle.

• For the UAL-S type, the interphase insulation barrier is not supplied separately and is not required for the specified configuration.

If you have questions regarding barrier applicability for a specific breaker or cradle type, please contact technical support with the breaker and cradle model information.
