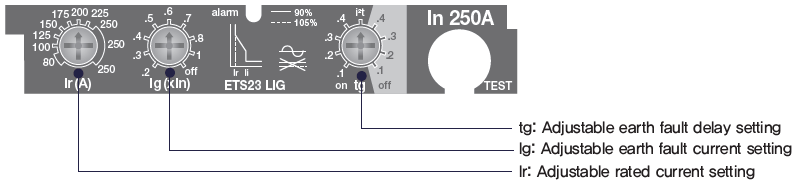

The ETS23 LIG electronic trip unit is available for UTS150 and UTS250 molded case circuit breakers. There are only a few adjustment dials on this trip unit.

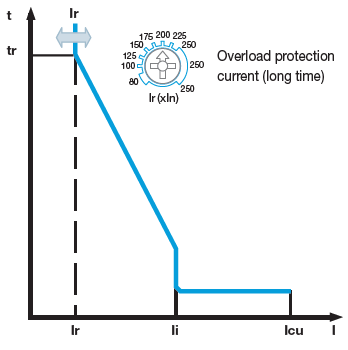

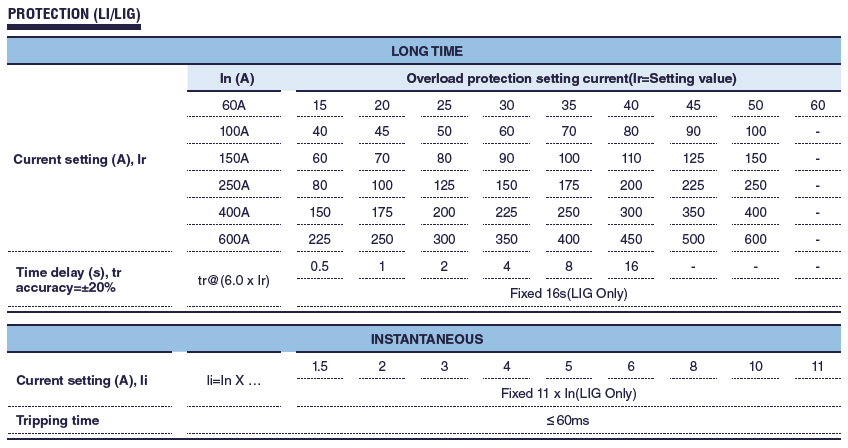

Refer to the tables below for the long time and instantaneous values.

Refer to the Susol UL MCCB webpage for more information.
