Does polarity matter when running DC on Susol MCCBs?

Does polarity matter when running DC on Susol MCCBs?

No, the circuit breaker is not polarity sensitive.

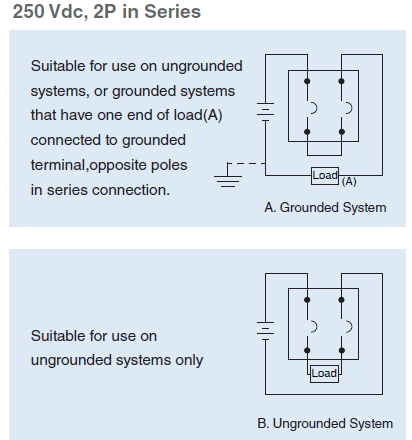

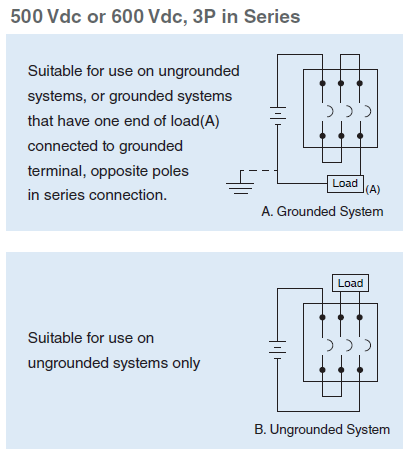

Referring to the below diagrams from the MCCB catalog; it may be assumed that the positive (+) line always goes into the top left of the MCCB while the negative (-) is landed on the top right for a 2P example. In fact, you may switch the positive and negative polarity as long as the proper bus bar arrangement is used for a series connection.
