Contactor Selection for a WYE-Delta Starter

Contactor Selection for a WYE-Delta Starter

A WYE-Delta start is used to reduce the inrush current, which can be as high as 6~10 times the motor FLA, seen on across the line starts. The below content as meant to be a guide to assist selecting the required contactors and accessories for this type of starter.

Wiring Diagram

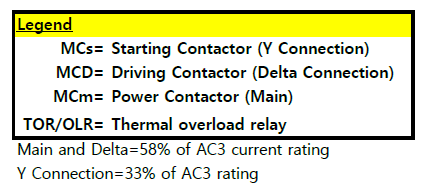

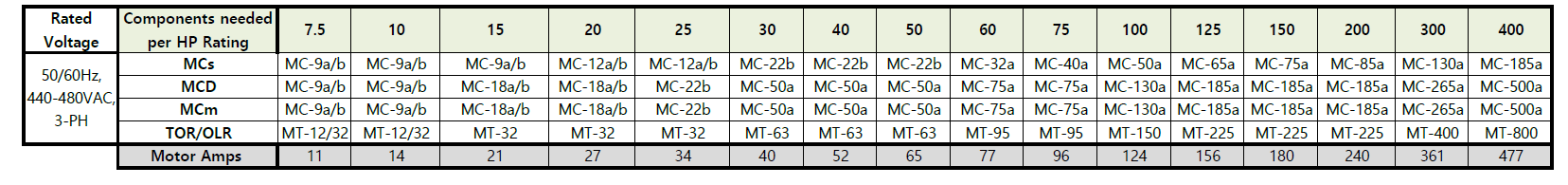

Contactor Sizing

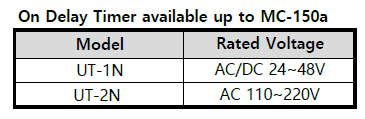

On Delay Timers
