Allowed mounting arrangements for the MC (Metasol) contactors

Allowed mounting arrangements for the MC (Metasol) contactors

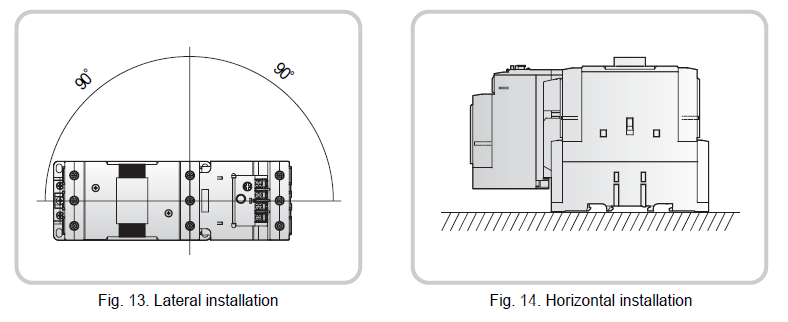

Lateral, horizontal, and the standard vertical mounting is all allowed on the Metasol series contactors. This allows for more flexibility and easier wiring for different panel or application needs.


When installing in a lateral position follow the below precautions.
  1. Please install rotated 90 degrees counterclockwise from standard installation. If you’ re only using the magnetic contactor, any direction is okay. Other angles are not acceptable past 30 degrees vertical. See Figure 15.

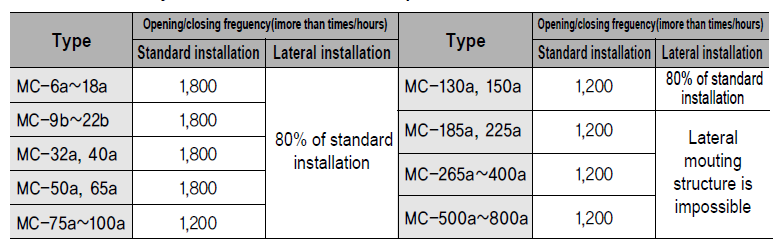

  2. There is no detrimental effect on the function or performance of the contactor when installed in a lateral position. Overall mechanical on/off durability and lifespan can slightly decrease (Figure 16).
  3. The current setting of the thermal overload relay changes slightly.
  4. Lateral installation is not allowed for DIN rail mounted installations.

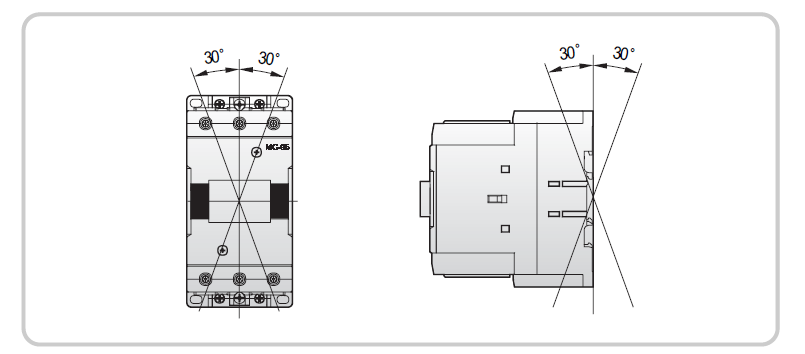

Fig. 15 Maximum allowable rotation when installed vertically.

Fig. 16
