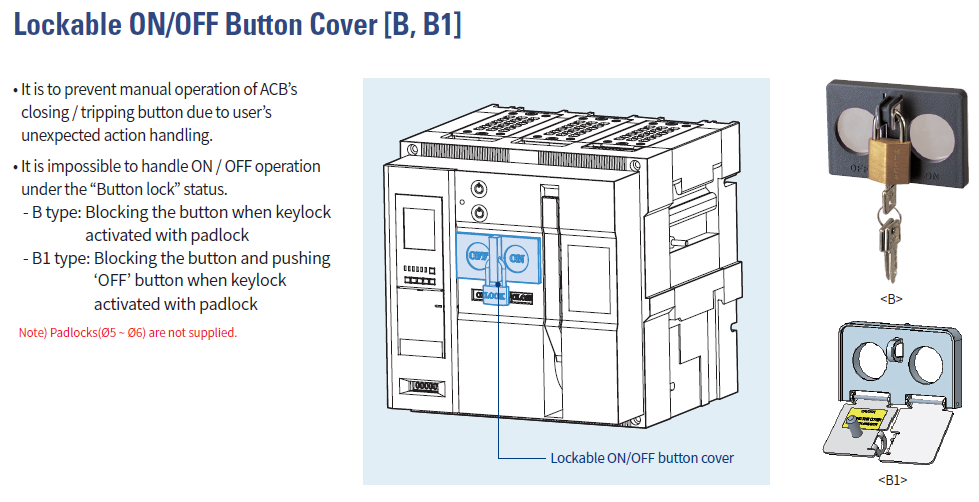

ACB Breakers have the ability to add certain accessories such as "Lockable ON/OFF Button Covers." We also refer to these products as Button Padlocks.

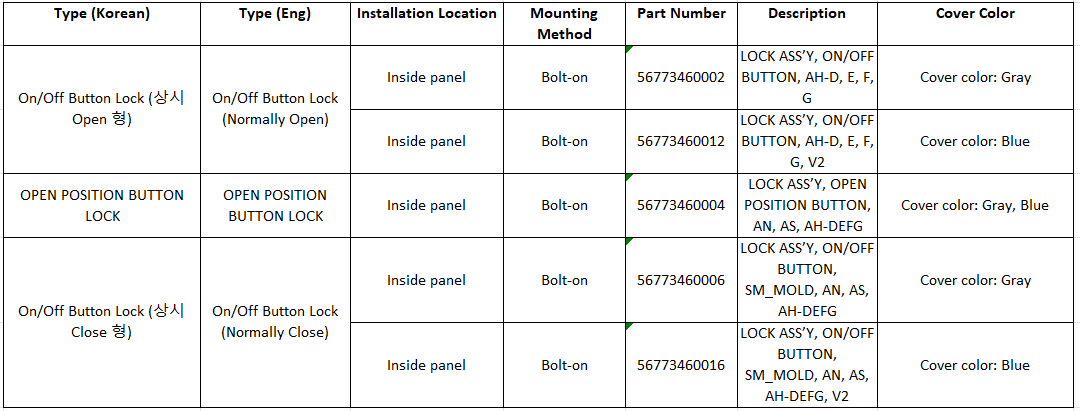

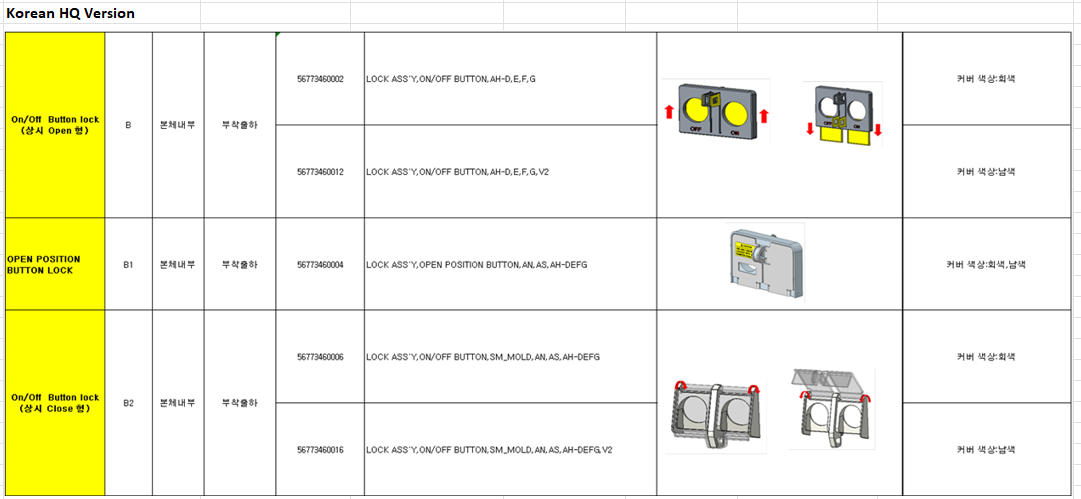

Due to the various different amount of breakers we have supplied from LS, it is hard to determine which button padlock your breaker will need depending on its manufacturing date and size. The chart below will help you figure out the proper item codes for these button padlocks.




Examples:

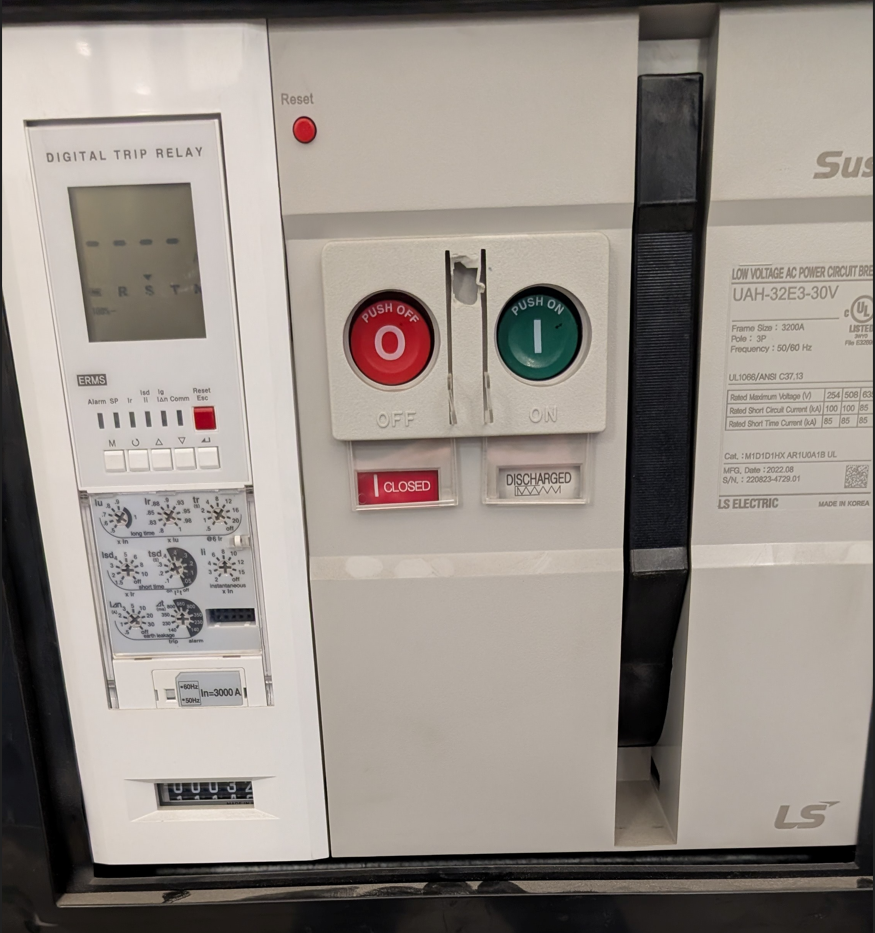

The breaker below would order: 56773460012 / LOCK ASS'Y,ON/OFF BUTTON,AH-D,E,F,G,v2
