4 Pole Contactors Reversing Assembly

4 Pole Contactors Reversing Assembly

4 pole contactors utilize the AR-9 interlock. this design is slightly different than the 3 pole variant. Refer to the below steps to see how to assemble.

Required parts are below

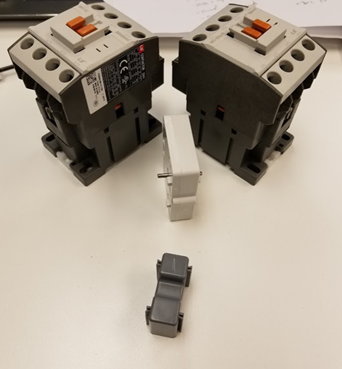

  1. 2 x 4P Contactors
  2. AR-9 Interlock


The interlock mechanism sits between the contactors. Pins line up into the orange plastic and the beige plastic tabs go into the contactors body.



The plastic holder slides into the slots on the bottom of the contactors.

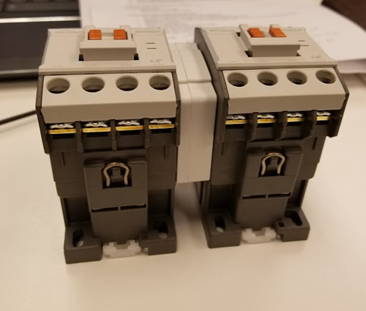

The contactors are now mated together.
