4 Pole Contactor Interlock Installation

4 Pole Contactor Interlock Installation

Required parts

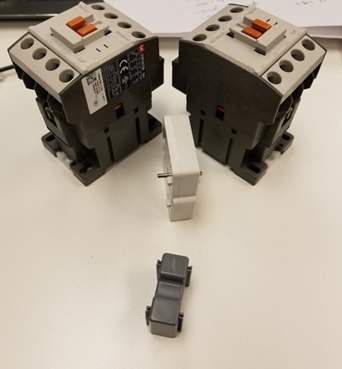

  1. 2 x 4 Pole contactors
  2. 1 x AR-9 interlock

The interlock mechanism gets sandwiched between the contactors. The pins line up into the orange plastic and the beige plastic tabs go into the contactors body.


Plastic holder slides into slots on the bottom.

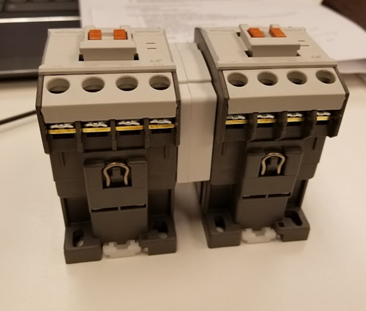

The contactors are now mated together.
